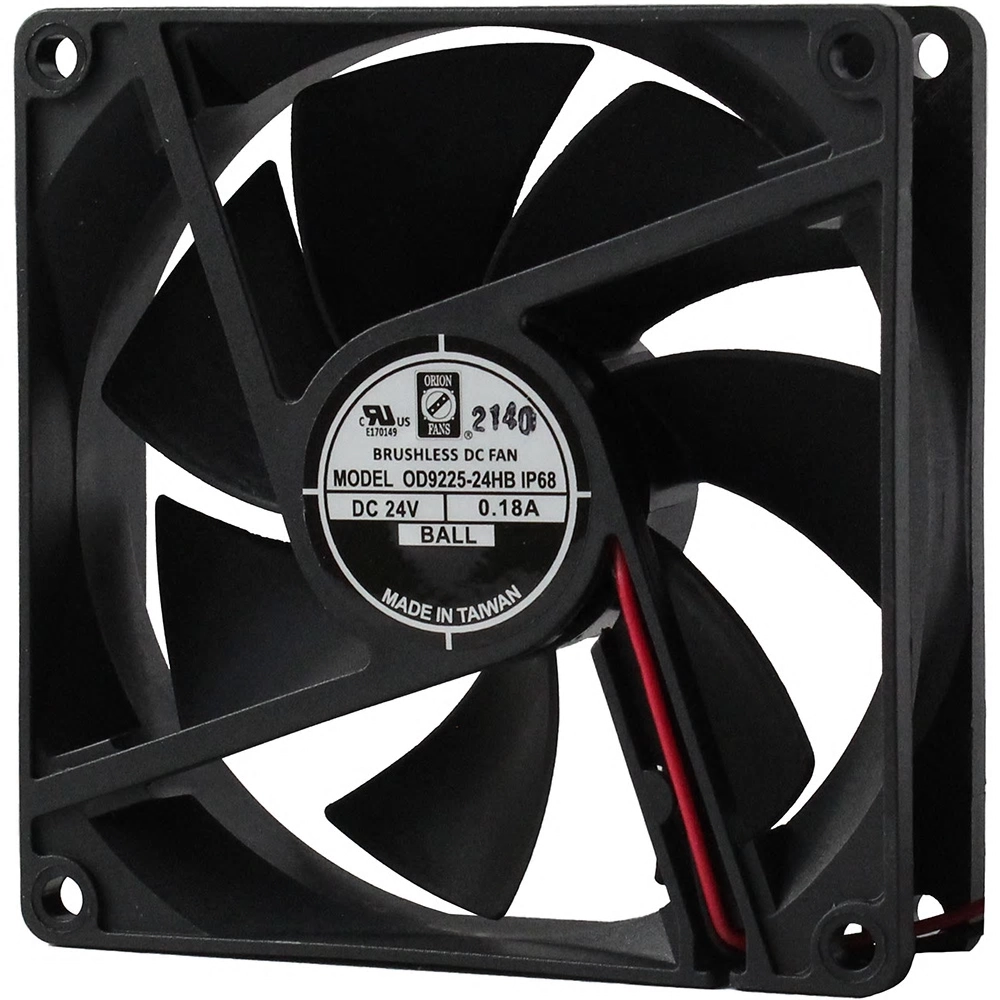

Orion (Knight Electronics, Inc.) OD9225-24LBIP68 fan

Name: Orion (Knight Electronics, Inc.) OD9225-24LBIP68 fan
Brand: BPRPARTS
SKU: OD9225-24LBIP68
Price: 37.00 USD
Availability: InStock

SKU: OD9225-24LBIP68

Fan Tubeaxial 24VDC Square – 92mm L x 92mm H Ball 25.0 CFM (0.700m³/min) 2 Wire Leads

Contact us for bulk price

$37,00

Standard delivery

Trackable Standard Shipping

6-12 Days

DHL Courier delivery

3-6 Days

120 days Warranty and Money back Guarantee

Payment Methods:

Description

MPN:	OD9225-24LBIP68
Noise:	23.0dB
Air Flow:	25.0 CFM (0.700m³/min)
Power (Watts):	2.4 W
Voltage – Rated:	24VDC
RPM:	1800 RPM
Termination:	2 Wire Leads
Manufacturer:	Orion (Knight Electronics, Inc.)
Size / Dimension:	Square – 92mm L x 92mm H
Width:	25.00mm
Static Pressure:	0.120 in H2O (29.9 Pa)
Bearing Type:	Ball
Fan Type:	Tubeaxial
Features:	Auto Restart
Ingress Protection:	IP68 – Dust Tight, Waterproof
Operating Temperature:	5 ~ 149°F (-15 ~ 65°C)
Approval Agency:	cURus, TUV
Weight:	0.211 lb (95.71 g)
Series:	OD9225
Current Rating (Amps):	0.100A
Voltage Range:	–
Material – Frame:	Polybutylene Terephthalate (PBT)
Material – Blade:	Polybutylene Terephthalate (PBT)
Lifetime @ Temp.:	70000 Hrs @ 40°C
Detailed Description:	Fan Tubeaxial 24VDC Square – 92mm L x 92mm H Ball 25.0 CFM (0.700m³/min) 2 Wire Leads

Specification

Overview

Weight	1 kg
MPN	OD9225-24LBIP68
Noise	23.0dB
Air Flow	25.0 CFM (0.700m³/min)
Power (Watts)	2.4 W
Voltage - Rated	24VDC
RPM	1800 RPM
Manufacturer	Orion (Knight Electronics, Inc.)
